Pulling Eye

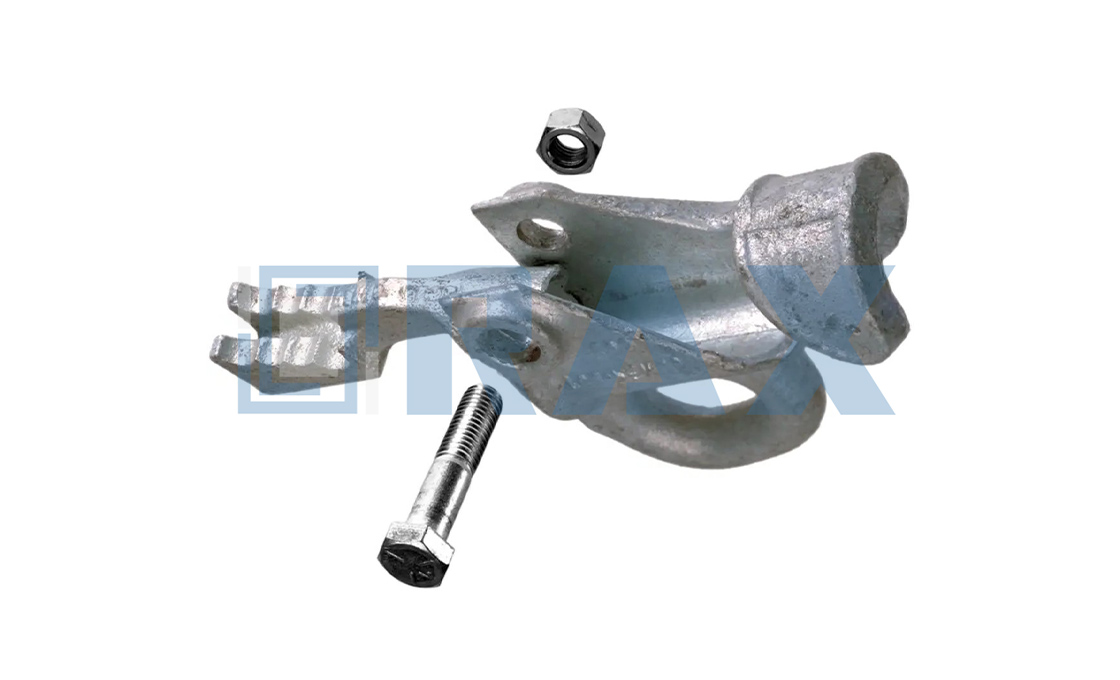

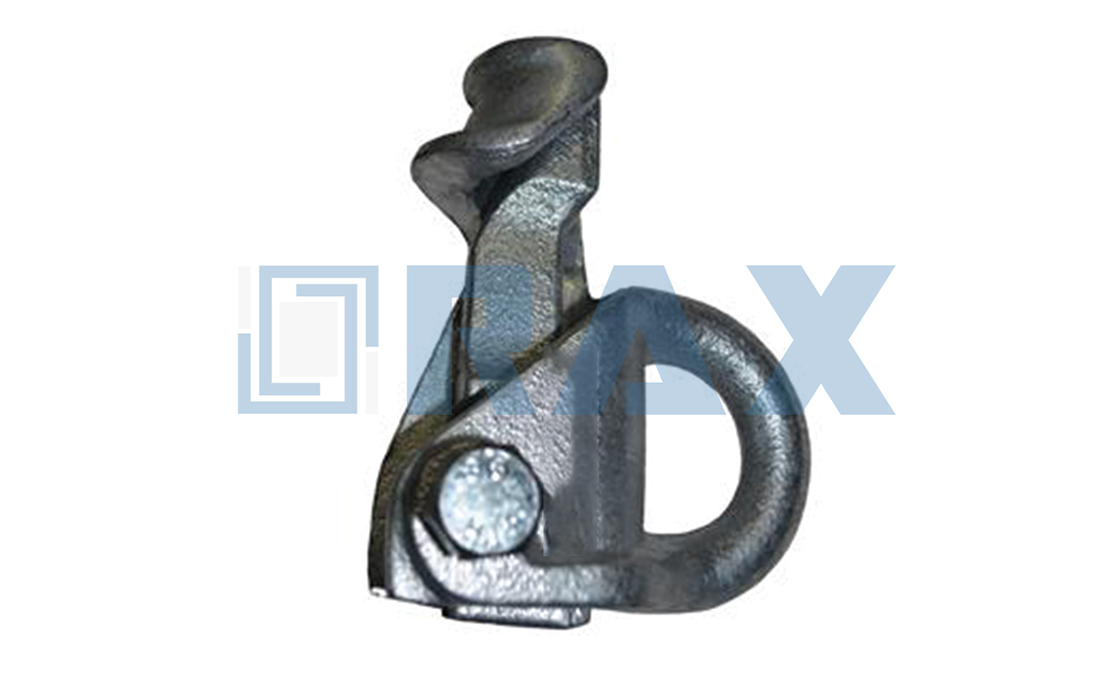

The Anchor Rod Pulling Eye is a robust tool designed for anchoring and tensioning applications, particularly in utility and construction settings. Also known as an anchor rod pulling eye assembly or pulling eye, this product is crafted from durable ductile iron, offering a safe working load of up to 2,700 kg with a safety factor of 5:1. Its large offset eye measures 50 mm long and 35 mm wide, making it compatible with various pull-lift hooks. The sliding wedge mechanism allows for easy adjustment to accommodate rod diameters ranging from 12 mm to 25 mm, and it can fit rods up to 32 mm when the wedge is removed.
Using the Anchor Rod Pulling Eye is straightforward. Simply attach it to the designated anchor rod and utilize a hoist to apply tension or lift loads. This tool is ideal for connecting guy wires securely to ground anchors, ensuring stability during installation. It works seamlessly with other equipment like chain hoists and lifting systems, making it an essential component in pole installations and other heavy-duty applications.
Key Features:
• Made from high-strength ductile iron for enhanced durability
• Safe working load limit of 2,700 kg with a 5:1 safety factor
• Adjustable sliding wedge for various rod diameters
• Large offset eye accommodates multiple hook sizes
• Custom sizes available to meet specific project requirements
Frequently Asked Questions (FAQ)
What is an Anchor Rod Pulling Eye?
An Anchor Rod Pulling Eye is a specialized tool designed to facilitate the safe installation of guy wires at anchor locations. It provides a secure connection point for hoists, allowing for efficient tensioning and installation of pole guy wires.
What materials are Anchor Rod Pulling Eyes made from?
Anchor Rod Pulling Eyes are typically constructed from durable materials such as nodular iron or ductile iron. These materials ensure strength and corrosion resistance, making them suitable for outdoor use and demanding environments.
What are the standard sizes of Anchor Rod Pulling Eyes?
Standard sizes for Anchor Rod Pulling Eyes accommodate anchor rods ranging from 1/2″ to 1-1/4″ in diameter. Common sizes include 1/2″, 5/8″, 3/4″, 1″, and 1-1/4″. We are a leading manufacturer capable of customizing sizes to meet specific customer requirements.
How much weight can an Anchor Rod Pulling Eye support?
The working load limit for Anchor Rod Pulling Eyes generally ranges from 2,700 kg (approximately 6,000 lbs) to 3,000 lbs, depending on the design. Always adhere to the manufacturer’s specifications to ensure safety during use.
Can Anchor Rod Pulling Eyes be reused?
Yes, many Anchor Rod Pulling Eyes are designed to be reusable. However, it is essential to inspect them regularly for wear and damage before each use to maintain safety and effectiveness.
How do you install an Anchor Rod Pulling Eye?
To install an Anchor Rod Pulling Eye, position it around the anchor rod and secure it using the provided nut and bolt. Ensure that it is tightly fastened before attaching any hoist or load to prevent accidental disconnection.
Are there any safety considerations when using an Anchor Rod Pulling Eye?
Yes, safety is paramount. Users should be trained in proper installation techniques and should never exceed the specified working load limit. Additionally, care should be taken when working near energized lines to avoid electrical contact.
