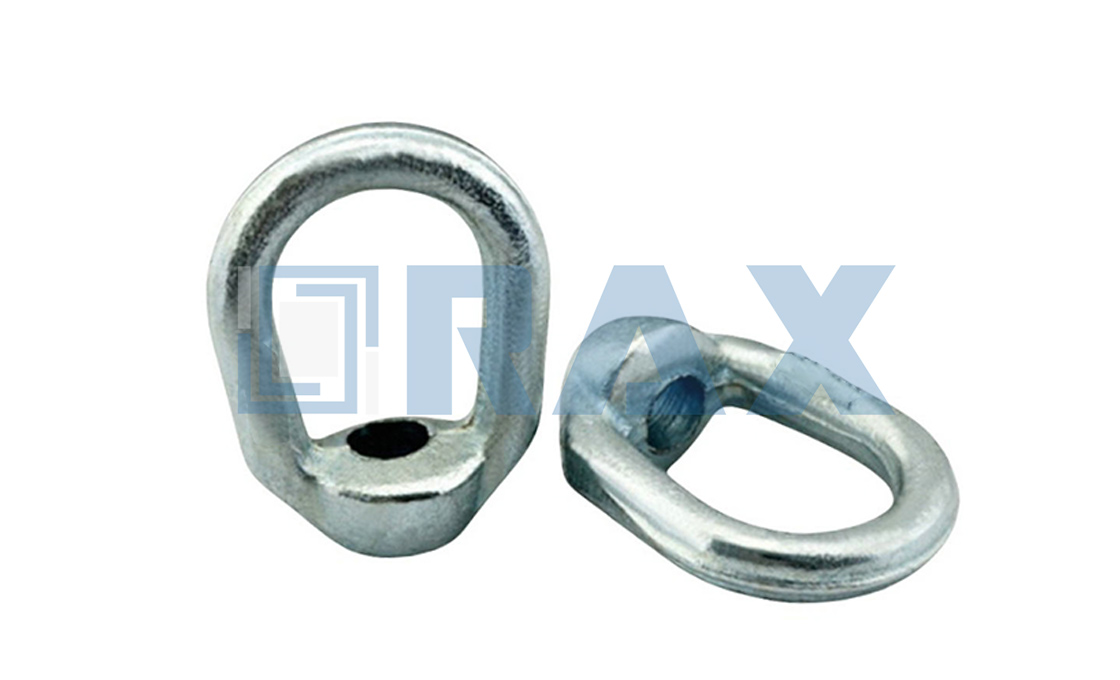

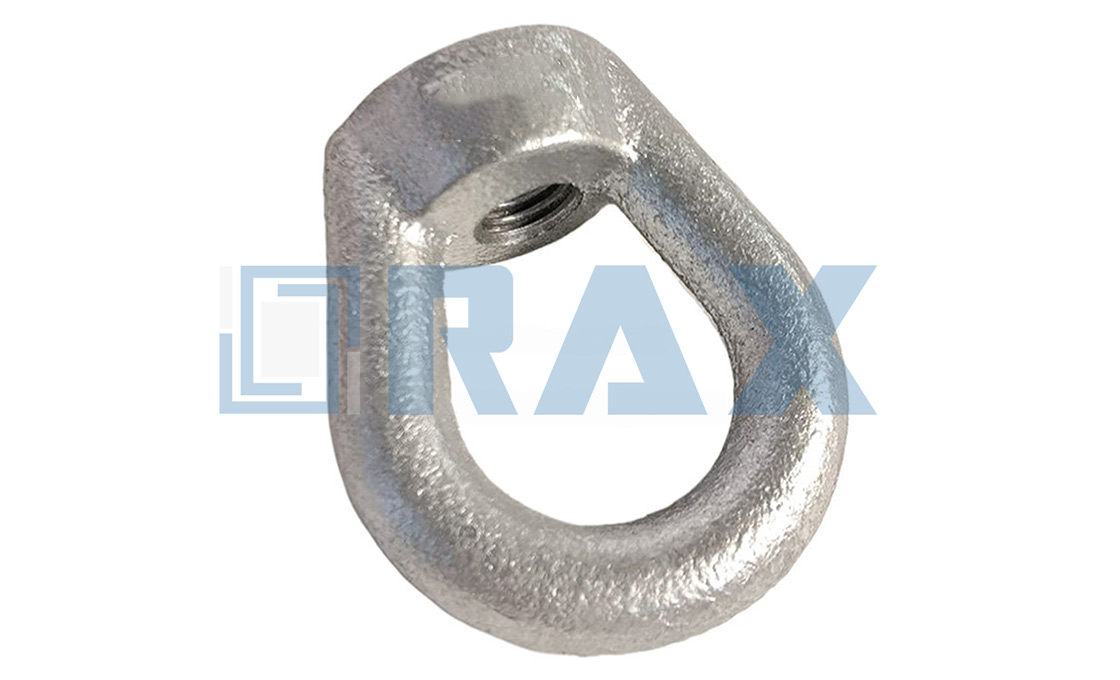

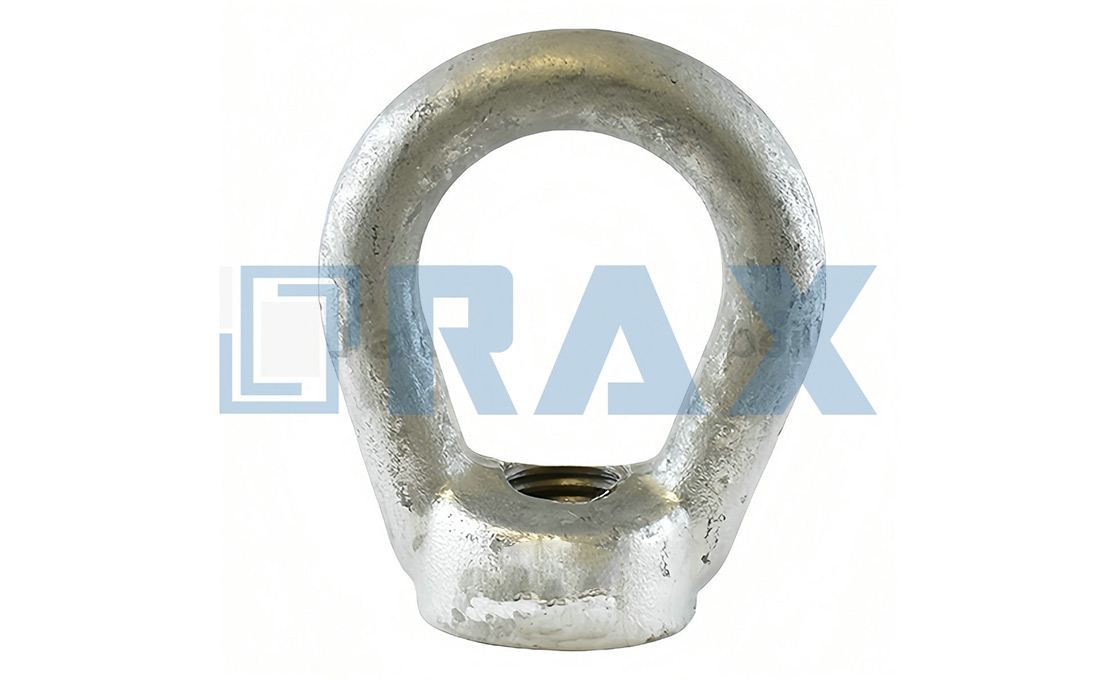

Oval Eye Nut
Oval Eye Nut is a specialized pole line hardware component designed for deadending, back-guying, and attaching pole head guys on threaded ends of crossarm bolts. It features a vertical threaded opening that accommodates 5/8-inch or 1/2-inch machine bolts, allowing secure connections with dead-end clamps when passed through crossarms. They are manufactured using drop forging techniques with steel rod material, ensuring high structural integrity and load-bearing capacity.
These essential line construction components serve as termination points for messengers and grounded conductors on wood poles, composite poles, spacer cable brackets, and lattice tower structures. Oval Eye Nuts provide reliable support with a working load limit of 5,000 pounds when properly installed, making them ideal for use with thimble clevis and formed wire dead-end combinations. The galvanized ductile iron construction offers superior corrosion resistance and durability in outdoor utility applications.
Features:
• Drop-forged steel construction with precision-drilled and tapped UNC-2B threading
• Rated ultimate tensile strength of 12,500 pounds for heavy-duty applications
• Oval-shaped eye design optimized for vertical pulling configurations
• Hot-dip galvanized finish for maximum weather resistance
• Compatible with standard 5/8-inch utility double arming bolts and through bolts

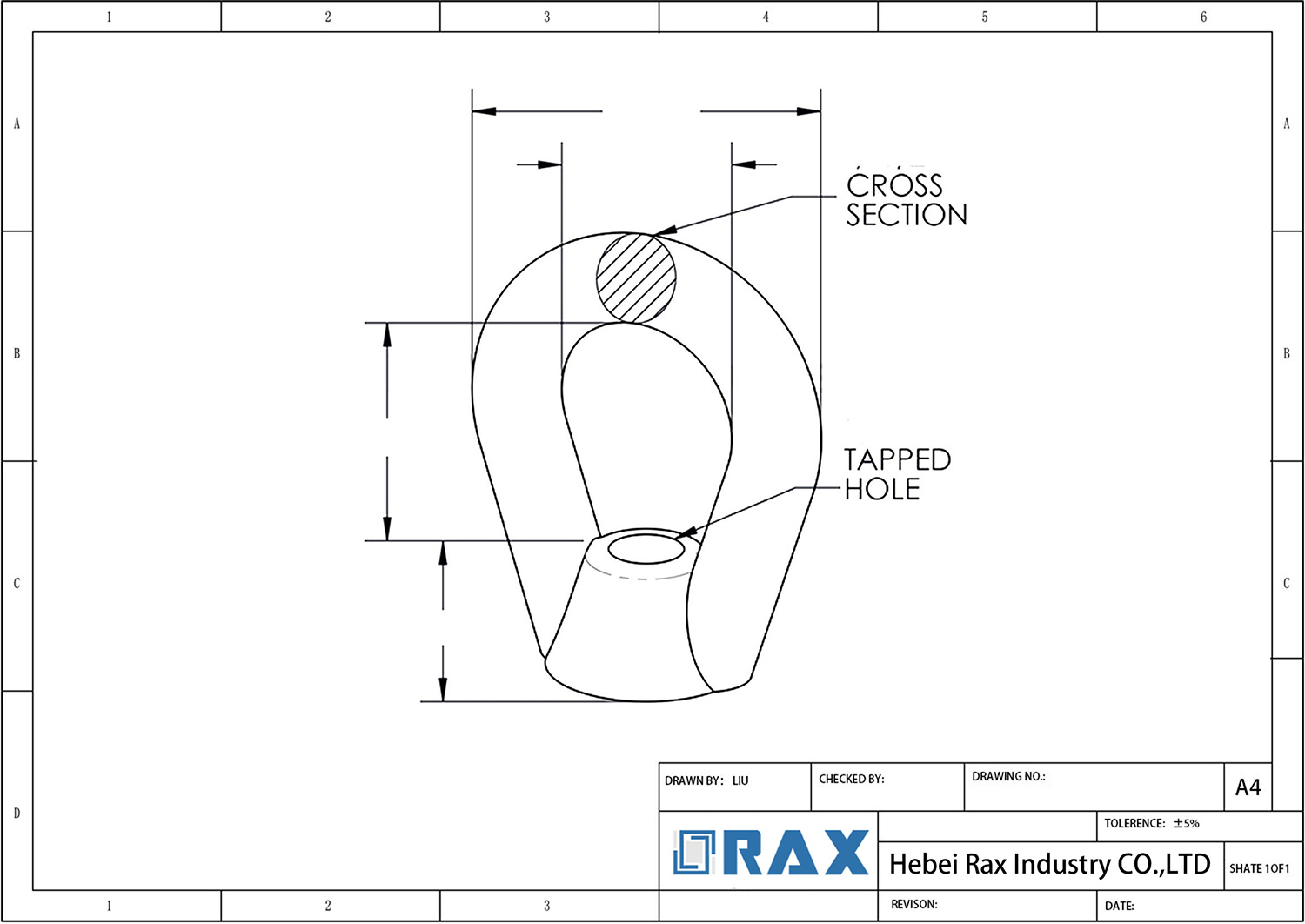

Oval Eye Nut Drawing
| Specifications | diameter | Ring inner diameter | Ring diameter | Grams | Only refer to the maximum lifting |
| M3 | 3 | 7.22 | 3 | ||
| M4 | 4 | 10.64 | 4.25 | ||
| M5 | 5 | 13.86 | 4.87 | ||
| M6 | 6 | 17.38 | 5.2 | 19.5 | |
| M8 | 8 | 20.23 | 7.85 | 37.5 | 0.16 |
| M10 | 10 | 24.12 | 8.49 | 64.0 | 0.25 |
| M12 | 12 | 29.63 | 9.36 | 102.5 | 0.4 |
| M14 | 14 | 31.74 | 11.99 | 147.0 | 0.63 |
| M16 | 16 | 33.56 | 12.63 | 178.0 | 1 |
| M18 | 18 | 33.8 | 13.1 | 180 | 1.6 |
| M20 | 20 | 40.8 | 14.7 | 291 | 2.5 |
| M24 | 24 | 43.8 | 18.8 | 470 | 4 |
