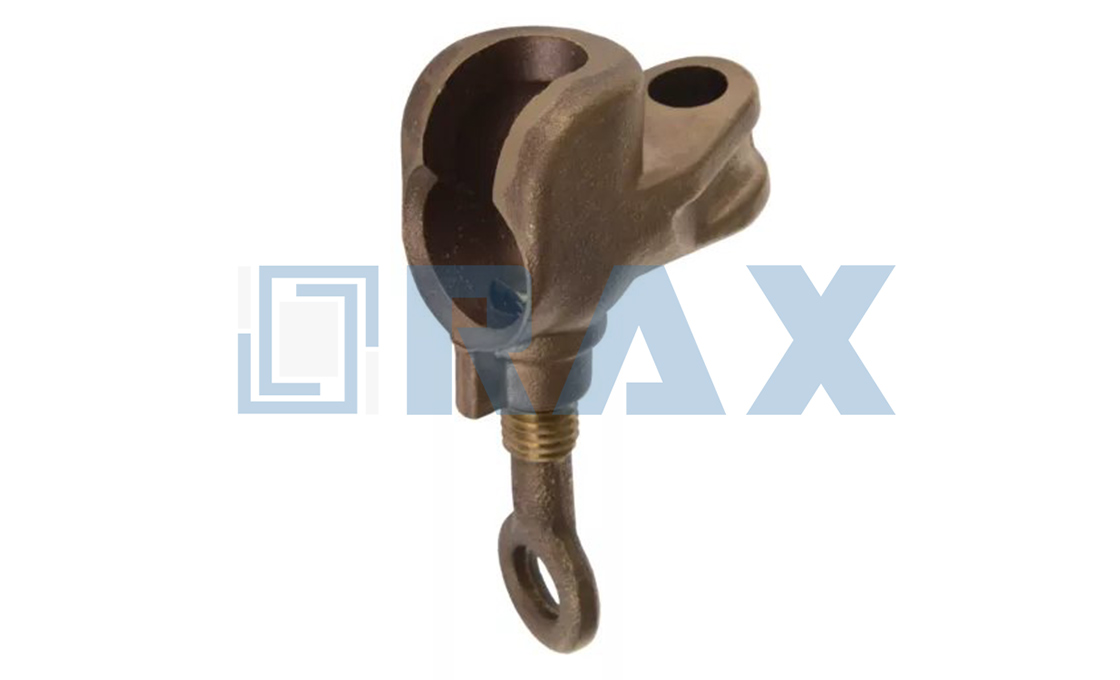

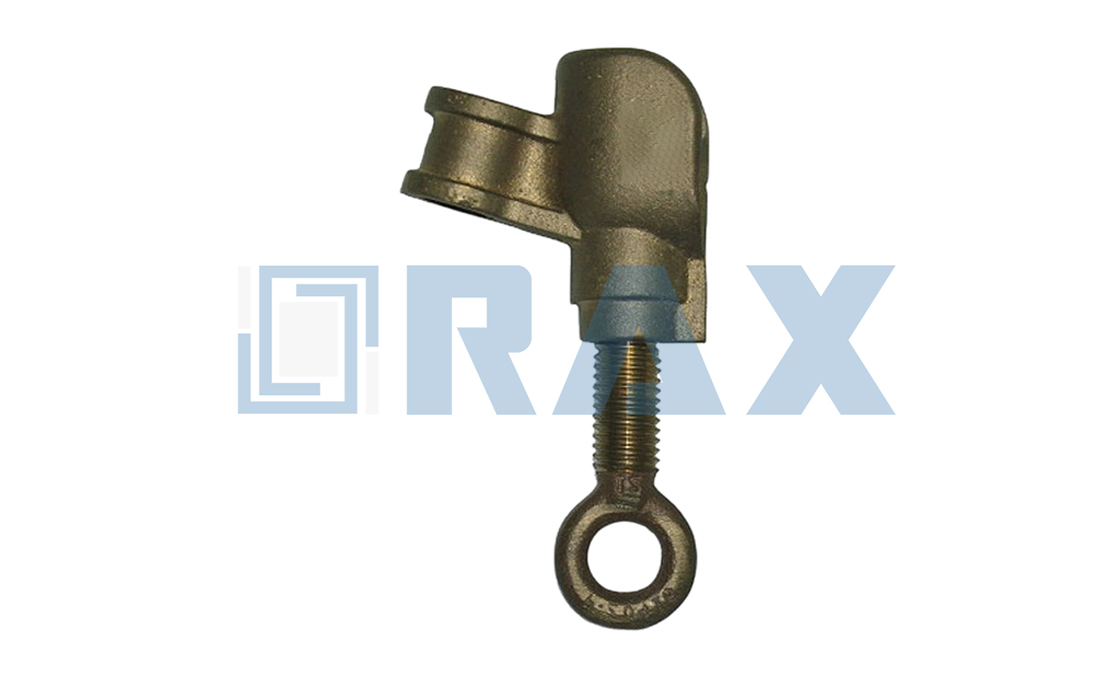

Ball Stud Ground Clamp
The Ball Stud Ground Clamp is a versatile grounding solution designed for safety and efficiency. Also known as a ball-stud clamp, it is specifically engineered to connect securely to ball studs. This clamp is essential for grounding electrical equipment, ensuring that any excess voltage is safely diverted to the ground. Its robust construction allows it to withstand high current loads, making it ideal for various industrial applications.
Using the Ball Stud Ground Clamp is straightforward. Simply attach it to the designated ball stud on your equipment, ensuring a tight fit for optimal conductivity. It can also be used in conjunction with other grounding devices, such as ferrules and grip-all clamp sticks, enhancing its functionality in complex electrical systems. This adaptability makes the clamp an essential tool for linemen and electricians who require reliable grounding solutions in their work.
The Ball Stud Ground Clamp features a durable design that can be customized according to specific requirements. It is rated for high current capacities, ensuring safety during operation. With its ergonomic design, it provides ease of use even in challenging environments.
Key Features:
• Rated for high current capacity up to 47kA
• Compatible with 1-inch ball studs
• Customizable sizes available
• Ergonomic design for ease of handling
• Durable construction for long-lasting performance
Related Products
Frequently Asked Questions (FAQ)
What is a Ball Stud Ground Clamp?
A Ball Stud Ground Clamp is a device used to connect grounding cables to electrical equipment. It features a ball stud that allows for secure attachment, ensuring effective grounding in various applications, including substations and industrial settings.
How does the Ball Stud Ground Clamp work?
The clamp utilizes a ball stud that fits into a corresponding socket, creating a reliable electrical connection. When tightened, it grips the grounding cable securely, allowing for safe operation during electrical maintenance or emergencies.
What are the current ratings for Ball Stud Ground Clamps?
Ball Stud Ground Clamps typically have high current ratings. For example, some models can handle up to 43kA for 15 cycles and 30kA for 30 cycles, making them suitable for high-demand applications.
Can Ball Stud Ground Clamps be used in outdoor environments?
Yes, many Ball Stud Ground Clamps are designed for both indoor and outdoor use. They are constructed from durable materials like bronze and aluminum, which resist corrosion and wear from environmental factors.
What sizes do Ball Stud Ground Clamps come in?
Ball Stud Ground Clamps are available in various sizes to accommodate different applications. Common sizes include clamps designed for 1-inch and 30mm ball studs, ensuring versatility across different equipment.
How do I install a Ball Stud Ground Clamp?
Installation typically involves attaching the clamp to the ball stud on the equipment and securing it tightly using a torque wrench. It’s essential to follow manufacturer guidelines for proper torque specifications to ensure safety.
What materials are used in Ball Stud Ground Clamps?
Most Ball Stud Ground Clamps are made from high-quality bronze alloys and aluminum. These materials provide strength, conductivity, and resistance to environmental damage, ensuring long-lasting performance.
Can I use a Ball Stud Ground Clamp with different grounding cables?
Yes, these clamps are designed to be compatible with various grounding cables. However, it’s important to ensure that the cable size matches the specifications of the clamp for optimal performance.
What safety standards do Ball Stud Ground Clamps meet?
Ball Stud Ground Clamps are manufactured to meet industry safety standards such as ASTM specifications. These standards ensure that they can handle specific fault currents and provide reliable grounding in electrical systems.
