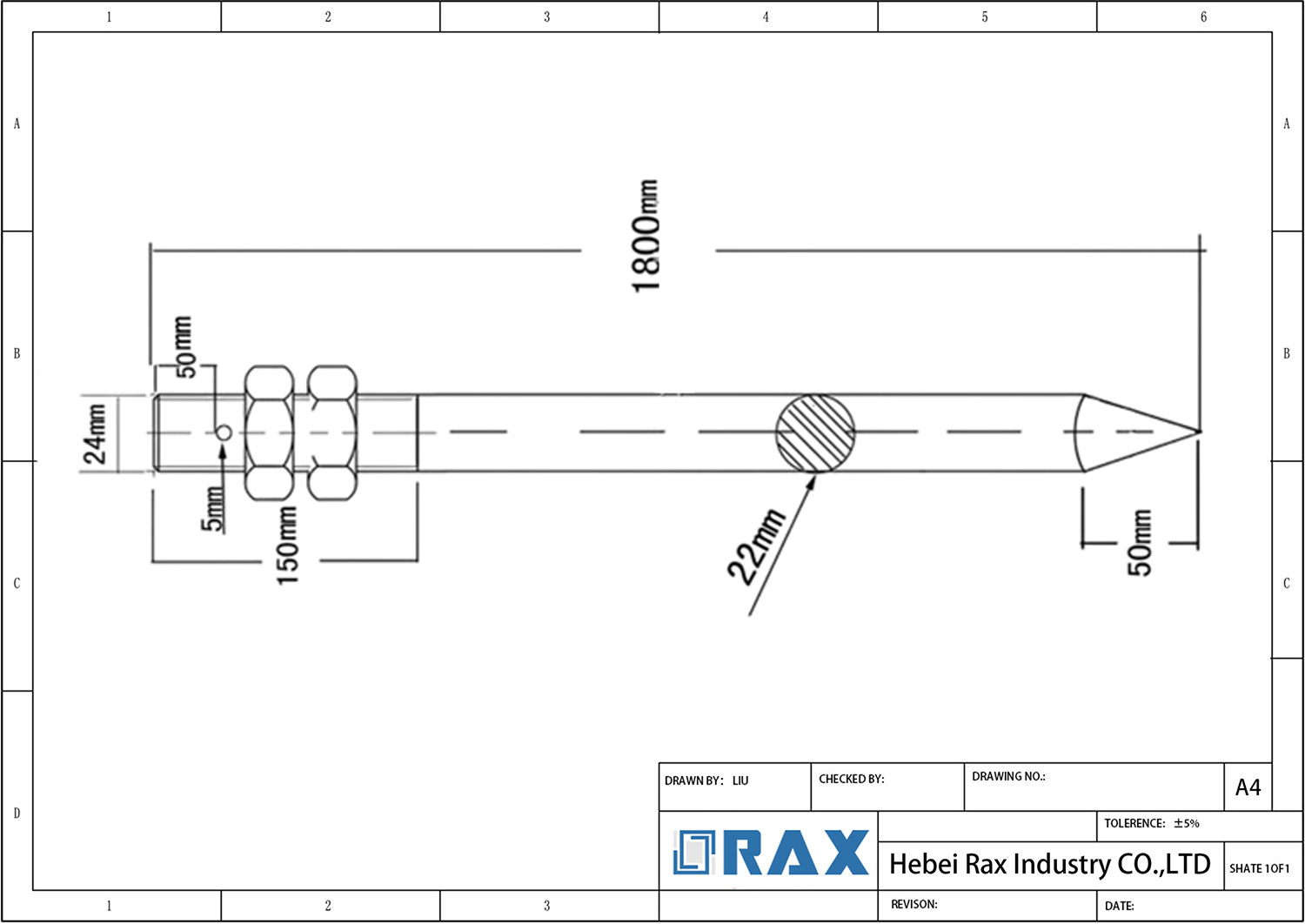

Cross Earth Rod
The Cross Earth Rod, also known as the Cross Type Ground Rod, is a vital component in electrical grounding systems. It functions as an electrode that dissipates fault currents into the earth, enhancing safety in various electrical installations. This type of ground rod is designed for use in overhead and underground electricity distribution networks, ensuring effective earthing under diverse soil conditions. The Cross Earth Rod can be customized in length and diameter to meet specific installation requirements, making it versatile for different environments.
To use the Cross Earth Rod, it is typically driven into the ground using a hammer or a driving tool until it reaches a suitable depth for optimal conductivity. It can be connected to various grounding accessories such as connectors and couplers to create a comprehensive earthing system. The structure of the Cross Earth Rod often features a high carbon steel core with a copper coating, providing excellent corrosion resistance and mechanical strength. This ensures longevity and reliability in applications ranging from low voltage installations to high fault current scenarios.
Key features:
- Customizable lengths and diameters for specific requirements
- High carbon steel core with copper coating for durability
- Effective in various soil conditions for reliable grounding
- Easy installation using standard driving tools
Suitable for both overhead and underground electrical systems
Related Products
Frequently Asked Questions (FAQ)
What is a Cross Earth Rod?
A Cross Earth Rod, also known as a Cross Type Ground Rod, is a grounding device used in electrical systems to ensure safety by dissipating excess electricity into the earth. Its cross-sectional design enhances stability and conductivity, making it effective for various applications.
How deep should a Cross Earth Rod be installed?
Typically, a Cross Earth Rod should be driven into the ground to a minimum depth of 8 feet (2.45 meters). This depth ensures that the rod is in contact with moist soil, which has lower resistance and improves grounding effectiveness.
What are the standard sizes of Cross Earth Rods?
Common sizes for Cross Earth Rods include lengths of 1.5 meters (approximately 5 feet), 2 meters (approximately 6.5 feet), and 3 meters (approximately 10 feet). We are a leading manufacturer capable of customizing sizes according to specific customer requirements.
How far apart should multiple Cross Earth Rods be installed?
When installing multiple Cross Earth Rods, they should be spaced at least 6 feet (1.83 meters) apart to ensure effective grounding and avoid overlapping resistance areas, which can diminish their effectiveness.
What materials are used for Cross Earth Rods?
Cross Earth Rods are typically made from materials like hot-dip galvanized steel or copper-bonded steel. These materials provide excellent conductivity and corrosion resistance, ensuring durability and longevity in various soil conditions.
Can I use rebar as a grounding rod?
While rebar can be used as a grounding rod due to its conductive properties, it is more susceptible to corrosion compared to dedicated grounding rods. It is recommended to use proper grounding rods for optimal performance and longevity.
