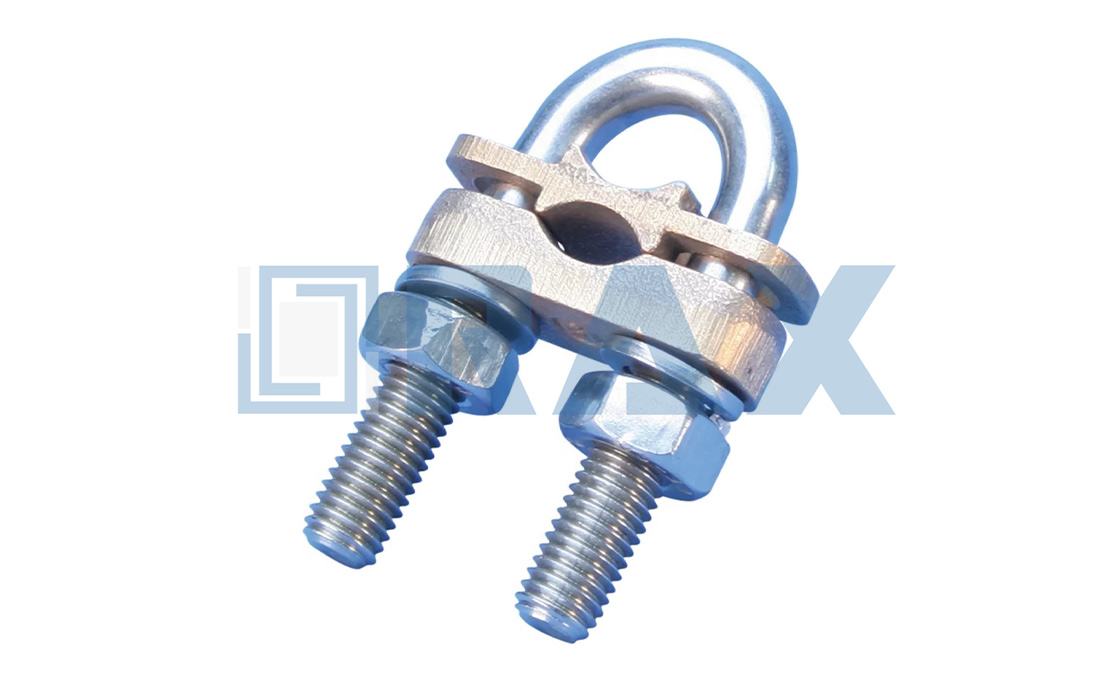

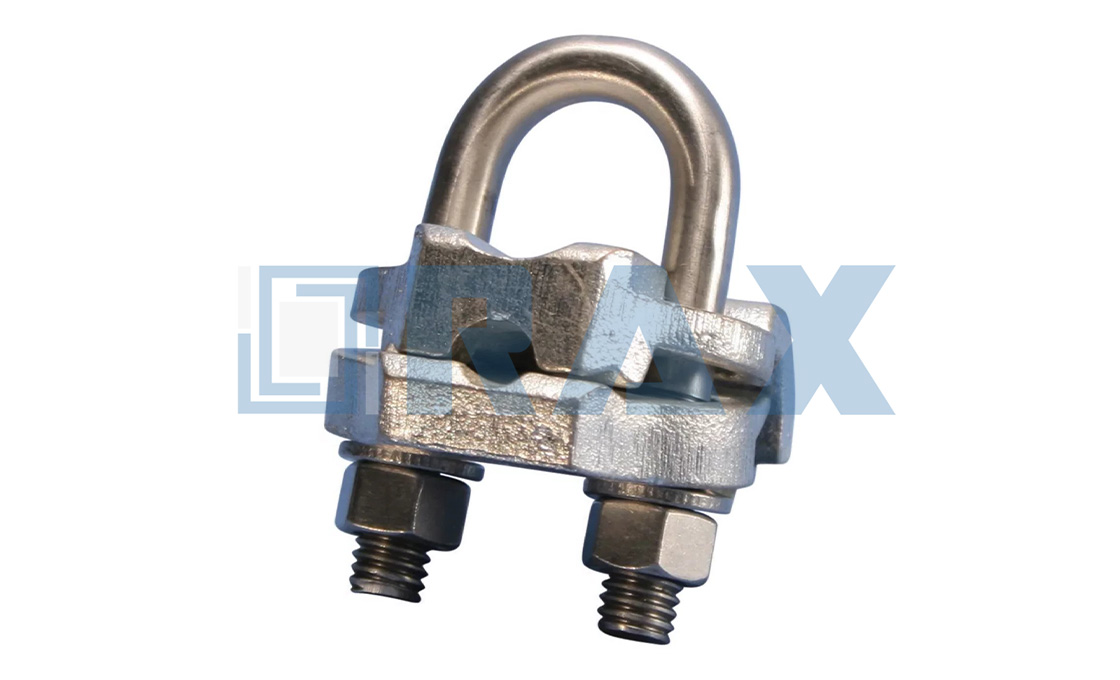

U Bolt Ground Clamp
The U Bolt Ground Clamp, also known as a U-Bolt grounding clamp, is an essential component for effective grounding in electrical systems. This clamp serves the primary function of securely connecting copper or copper-clad steel grounding conductors to ground rods, pipes, or rebar. It is particularly useful in applications requiring direct burial in earth or concrete, ensuring a reliable electrical connection that enhances safety and efficiency.
U Bolt Ground Clamps come in various sizes and configurations to accommodate different installation needs. They can connect multiple electrodes with a single cable, making them ideal for substation grounding and other extensive electrical systems. The clamp’s design allows for easy installation at both parallel and 90-degree angles, providing flexibility in tight spaces. Additionally, these clamps are made from durable materials such as bronze or copper alloy, ensuring long-lasting performance even in harsh environments.
These clamps are compatible with various conductor sizes ranging from 4 AWG to 250 kcmil, making the U Bolt Ground Clamp versatile for numerous applications. They are commonly used with grounding rods and pipes that measure between 1 inch and 3 inches in diameter. The robust construction of these clamps guarantees excellent conductivity and resistance to corrosion, which is crucial for maintaining effective grounding over time.
Key Features:
• Heavy-duty construction for durability in harsh environments
• Available in multiple sizes for versatile applications
• Allows connection of multiple electrodes with a single cable
• Designed for easy installation at various angles
• Compatible with a wide range of conductor sizes
Related Products
Frequently Asked Questions (FAQ)
What materials are U Bolt Ground Clamps made from?
U Bolt Ground Clamps are typically made from copper alloys or bronze for high conductivity and corrosion resistance. Some models may feature stainless steel U-bolts, ensuring durability and reliability in harsh environments.
How do I install a U Bolt Ground Clamp?
To install a U Bolt Ground Clamp, position the clamp over the rod or pipe, ensuring proper alignment. Use a wrench to tighten the nuts securely. Ensure that the grounding conductor is properly connected to maintain an effective grounding system.
What are the standard sizes of U Bolt Ground Clamps?
Standard sizes of U Bolt Ground Clamps accommodate ground rods from 1/2″ to 1″ in diameter and pipes ranging from 1/4″ to 3-1/2″. We are a leading manufacturer capable of customizing sizes based on specific requirements.
Can U Bolt Ground Clamps be used for direct burial?
Yes, many U Bolt Ground Clamps are designed for direct burial in earth or concrete. They are built to withstand harsh environmental conditions, making them suitable for underground installations.
What applications are suitable for U Bolt Ground Clamps?
U Bolt Ground Clamps are widely used in electrical grounding systems, telecommunications, power distribution, and industrial settings. They provide reliable connections between ground rods, pipes, and conductors in various configurations.
Are U Bolt Ground Clamps adjustable?
While U Bolt Ground Clamps are not inherently adjustable, they can accommodate different pipe diameters by selecting the appropriate size clamp. Some designs allow for installation at various angles for added flexibility.
