Y-Clevis Eye

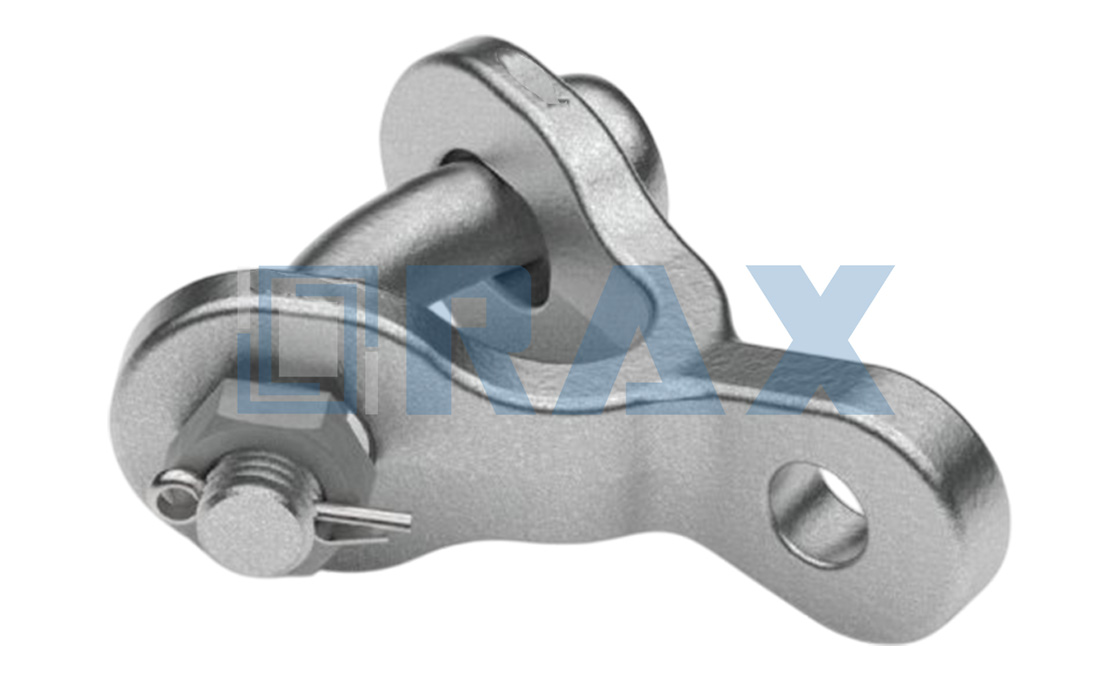

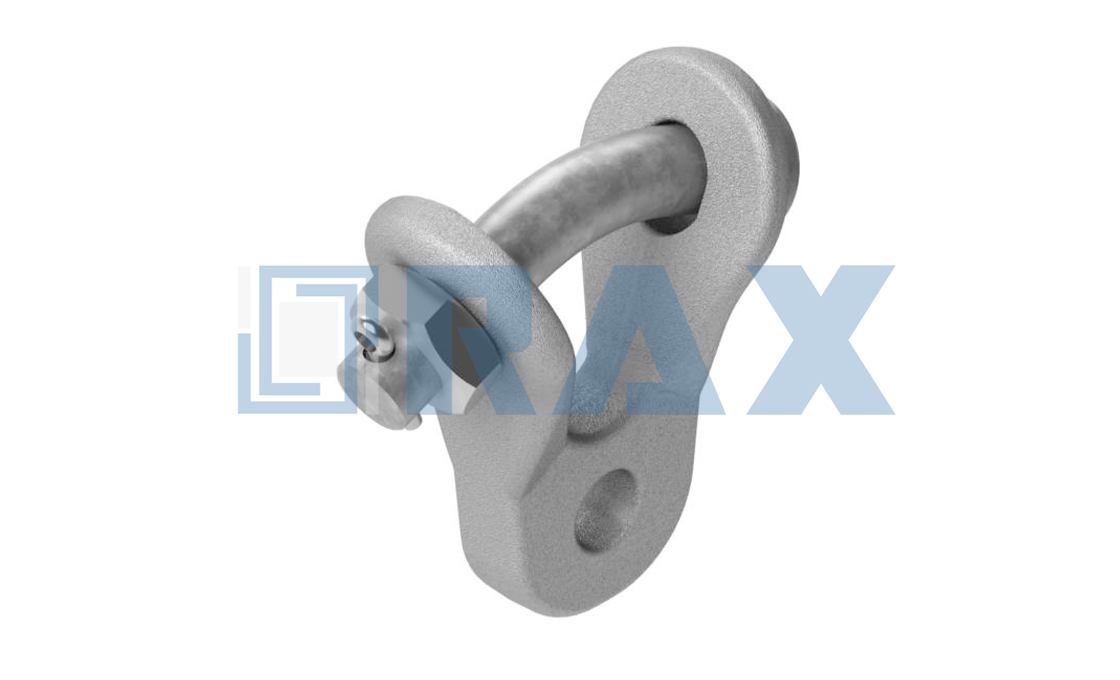

The Y-Clevis Eye serves as an insulator fitting for attaching clamping devices to yoke plates in bundle conductor assemblies. It features a distinctive Y-shaped design with a bent bolt section that enables additional articulation points. These components excel in power transmission systems where secure connections are paramount.
Y-Clevis Eyes are manufactured primarily from ductile iron with hot-dip galvanized coating for durability. The body construction includes a curved bolt section and precision-engineered eye hole for mounting. They come in various sizes, with ultimate strength ratings ranging from 19,000 to 30,000 pounds.
These hardware fittings integrate seamlessly with standard insulator assemblies and conductor bundles. The eye opening accommodates pins ranging from 5/8 inch to 2-1/2 inches in diameter. Their versatile design allows for multiple mounting configurations in transmission line systems.
Key Features:
• Bent bolt Y-section design provides enhanced articulation flexibility
• Hot-dip galvanized finish ensures superior corrosion resistance
• Ultimate strength ratings up to 30,000 pounds for heavy-duty applications
• Precision-machined eye holes for secure pin connections
• Available in multiple throat diameters for varied insulator compatibility

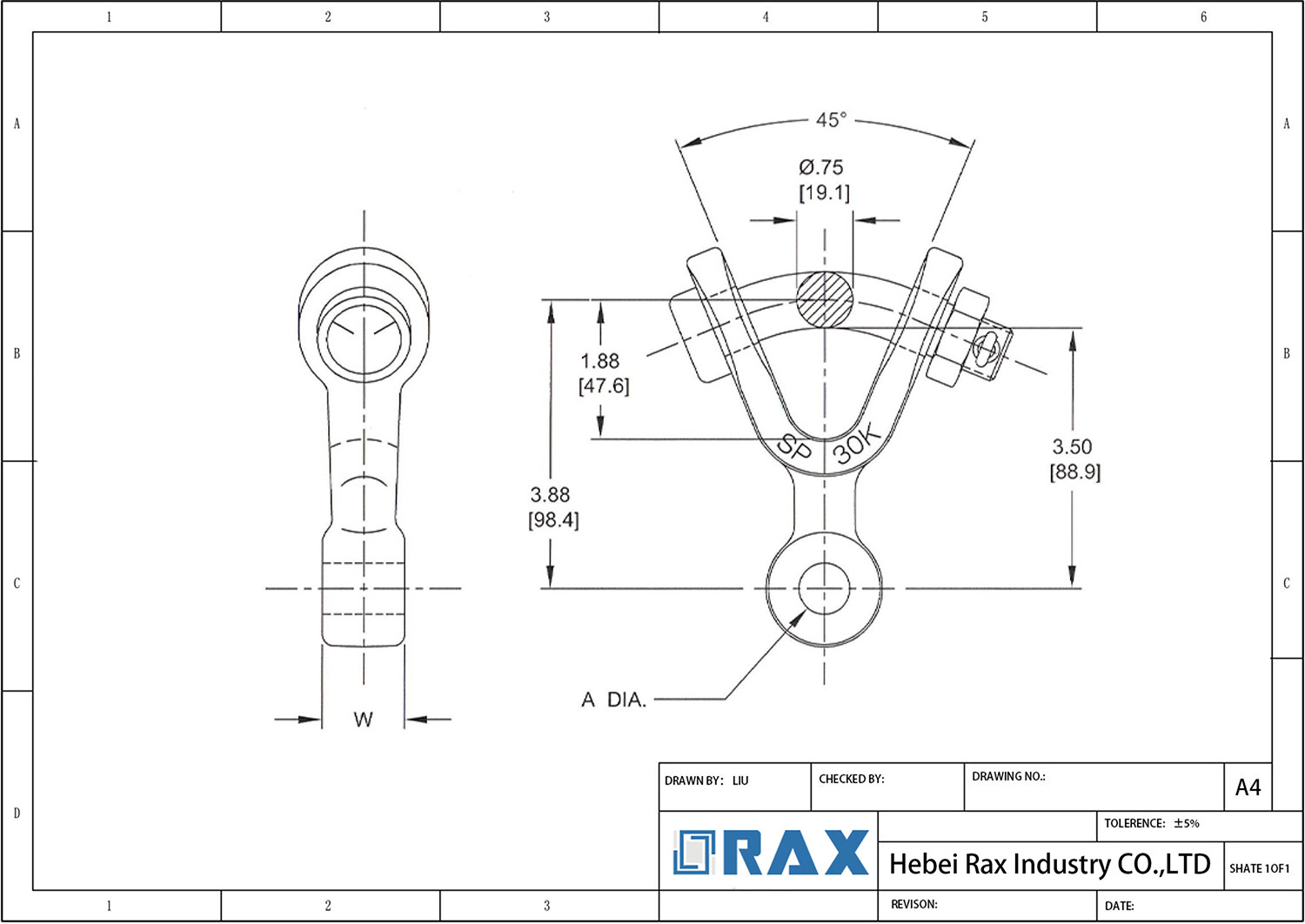

Y-Clevis Eye Drawing
| Catalog Number | General Dimensions | Vertical Ultimate Strength | Weight | ||||||
| in(mm) | |||||||||
| A | B | C | D | E | F | PD | lbf  (kN) | lb(kg) | |
| YC-5206 | 2-31/32(75.4) | 5/8(15.9) | 11/16(18) | 1-5/8(41.3) | 2-5/32(55) | 19/32(15) | 3/4(19) | 15,000(67) | 1.7(0.77) |
| YC-5207 | 2-15/16(74.8) | 3/4(19) | 11/16(18) | 1-5/8(41.3) | 2-1/8(54) | 19/32(15) | 3/4(19) | 20,000(84) | 1.7(0.77) |
| YC-5209 | 2-31/32(75.4) | 1-1/16(26.9) | 13/16(20.6) | 1-5/8(41.3) | 2-1/32(51.6) | 19/32(15) | 3/4(19) | 25,000(111) | 1.7(0.78) |
| YC-5211 | 2-31/32(75.4) | 2-1/8 (54.0) | 13/16(20.6) | 1-5/8(41.3) | 2-1/32(51.6) | 19/32(15) | 3/4(19) | 25,000(111) | 2.0(0.88) |
| YC-5212 | 2-31/32(75.4) | 1(25.4) | 11/16(17.5) | 1-5/8(41.3) | 2-1/32(51.6) | 19/32(15) | 3/4(19) | 25,000(111) | 1.8(0.81) |
| YCE-50 | 3-1/32(77.2) | 1-1/8(28.6) | 13/16(20.6) | 2(50.8) | 2-1/32(51.6) | 3/4(19) | 7/8(22) | 50,000(222) | 2.6(1.17) |
| YC-9030 | 2-13/16(71.4) | 5/8(15.9) | 11/16(18) | 1-5/8(41.3) | 2(50.8) | 19/32(15) | 3/4(19) | 15,000(67) | 1.2(0.56) |
| YC-9031 | 2-13/16(71.4) | 3/4(19.1) | 11/16(18) | 1-11/16(42.9) | 2(50.8) | 19/32(15) | 3/4(19) | 25,000(111) | 1.3(0.60) |
| YC-9032 | 2-13/16(71.4) | 1-1/4(31.8) | 11/16(18) | 1-11/16(42.9) | 2(50.8) | 19/32(15) | 3/4(19) | 25,000(111) | 1.5(0.70) |
| YC-9033 | 2-13/16(71.4) | 1-3/4(44.5) | 11/16(18) | 1-11/16(42.9) | 2(50.8) | 19/32(15) | 3/4(19) | 25,000(111) | 1.7(0.80) |
| YC-9034¹ | 3-3/32(78.6) | 2-1/4(57.2) | 11/16(18) | 1-11/16(42.9) | 2-5/32(55) | 19/32(15) | 3/4(19) | 30,000(133) | 2.3(1.0) |
| YC-6106¹ | 2-31/32(75.4) | 2-1/4(57.2) | 13/16(20.6) | 1-5/8(41.3) | 2(50.8) | 19/32(15) | 3/4(19) | 30,000(133) | 1.7(0.75) |
| YC-6107¹ | 2-31/32(75.4) | 1(25.4) | 11/16(17.5) | 1-5/8(41.3) | 2(50.8) | 19/32(15) | 3/4(19) | 30,000(133) | 1.4(0.62) |
| YC-6108¹ | 2-5/32 (55) | 2-3/4(69.9) | 13/16(20.6) | 1-13/16(46) | 2-5/32(55) | 19/32(15) | 3/4(19) | 30,000(133) | 2.6(1.18) |
Frequently Asked Questions (FAQ)
What is a Y-Clevis Eye used for?
Y-clevis eyes are specialized components primarily used to attach clamping devices to yoke plates or other associated hardware in bundle conductor assemblies. The bent bolt in the Y-section provides an additional point of articulation within an assembly.
What materials are Y-Clevis Eyes made from?
Y-Clevis Eyes are typically manufactured using galvanized steel or ductile iron with hot-dip galvanization. The clevis pins are made from galvanized steel, while cotter pins are often made from stainless steel for enhanced durability.
What are the standard strength ratings for Y-Clevis Eyes?
Y-Clevis Eyes come in various strength ratings, with common ultimate tensile strength (UTS) ratings ranging from 25,000 to 45,000 pounds. They exceed CSA C83 Charpy Level 1.5 requirements for durability and safety.
What voltage applications are Y-Clevis Eyes suitable for?
Y-Clevis Eyes are suitable for AC overhead lines with nominal voltages greater than 1,000V and frequencies not exceeding 100 Hz. They can be used in both transmission line applications and substations.
What are the typical dimensions of a Y-Clevis Eye?
Standard Y-Clevis Eyes typically feature eye hole diameters of 0.813 inches, coupling lengths of approximately 2.563 inches, and eye widths of 1.125 inches. Specific dimensions vary by model and application requirements.
How do Y-Clevis Eyes provide articulation?
The Y-shaped design with a bent bolt provides multiple points of articulation, allowing for maximum movement while maintaining a compact size. This feature is particularly important in bundle conductor assemblies requiring flexibility.
