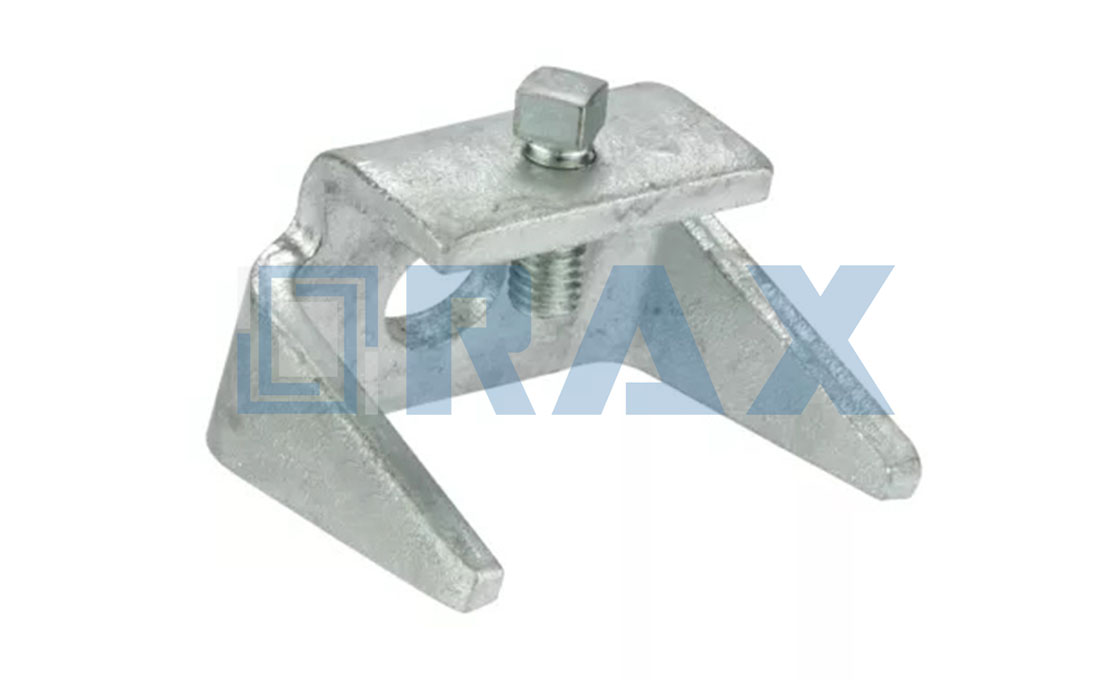

B Beam Clamp
The B Beam Clamp is a specialized hardware component designed for dead-ending strand runs to “I” beams, featuring an attachment hole that accommodates 5/8″ bolts and a convenient clamping screw for initial positioning on the beam flange. This versatile clamp is constructed from hot-dip galvanized steel that meets ASTM Specification A153, ensuring superior corrosion resistance and durability.
When used in conjunction with a 5/8″ thimble eye bolt, the B Beam Clamp provides a secure and reliable solution for deadending strand to I beams, with its adjustable clamping screw allowing for precise positioning on the beam flange during installation. The robust construction and practical design make it an essential component for structural applications requiring secure strand termination.

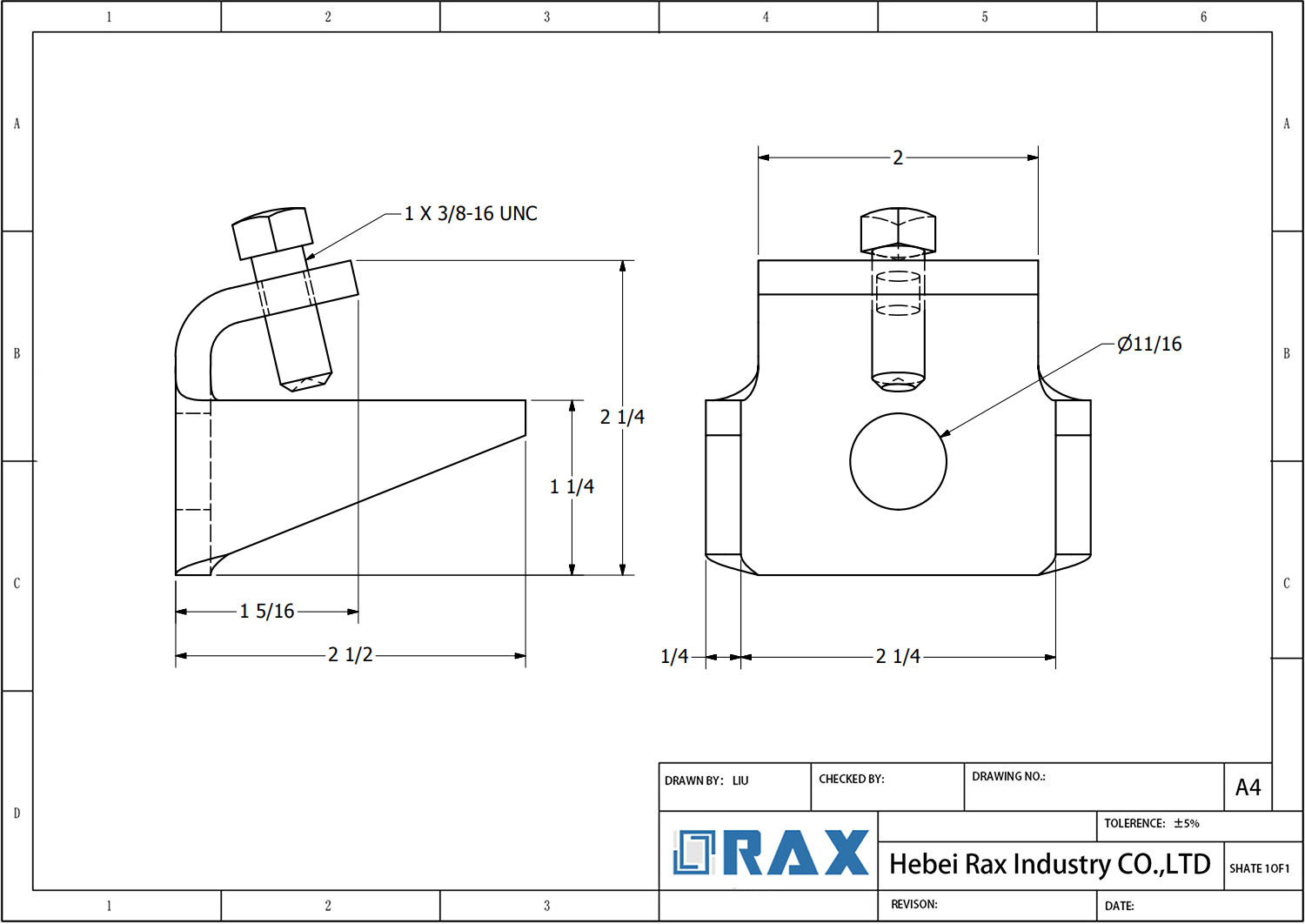

B Beam Clamp Drawing
