Cable Guard Strap
A Cable Guard Strap, also called a U Cable Guard Strap, is a mounting hardware designed for securing cable guards to utility poles. This pole-mounted conduit strap is manufactured from 14-gauge durable steel with ASTM A-153 galvanized coating. U Cable Guard Straps come in various sizes and feature two mounting holes sized at 11/32 inch for installation with 1/4-inch lag screws.
U Cable Guard Straps are specifically designed to work with U-cable guards, which protect cables in underground-to-overhead transitions on riser poles. The straps provide secure attachment for both steel and polyethylene U-cable guards, ensuring protection for power and communication cables installed vertically on poles. The U Cable Guard Strap system creates a tamper-proof enclosure while preventing direct contact between cables and pole preservatives.
Key Features:
• Stamped from AISI 1018 Steel with heavy-duty galvanized finish
• Two-hole mounting design for enhanced stability
• Stock material dimensions: 0.187″ x 1″ width
• Compatible with multiple cable guard sizes
• Size identification stamped on each strap
• Mounting holes pre-drilled for quick installation

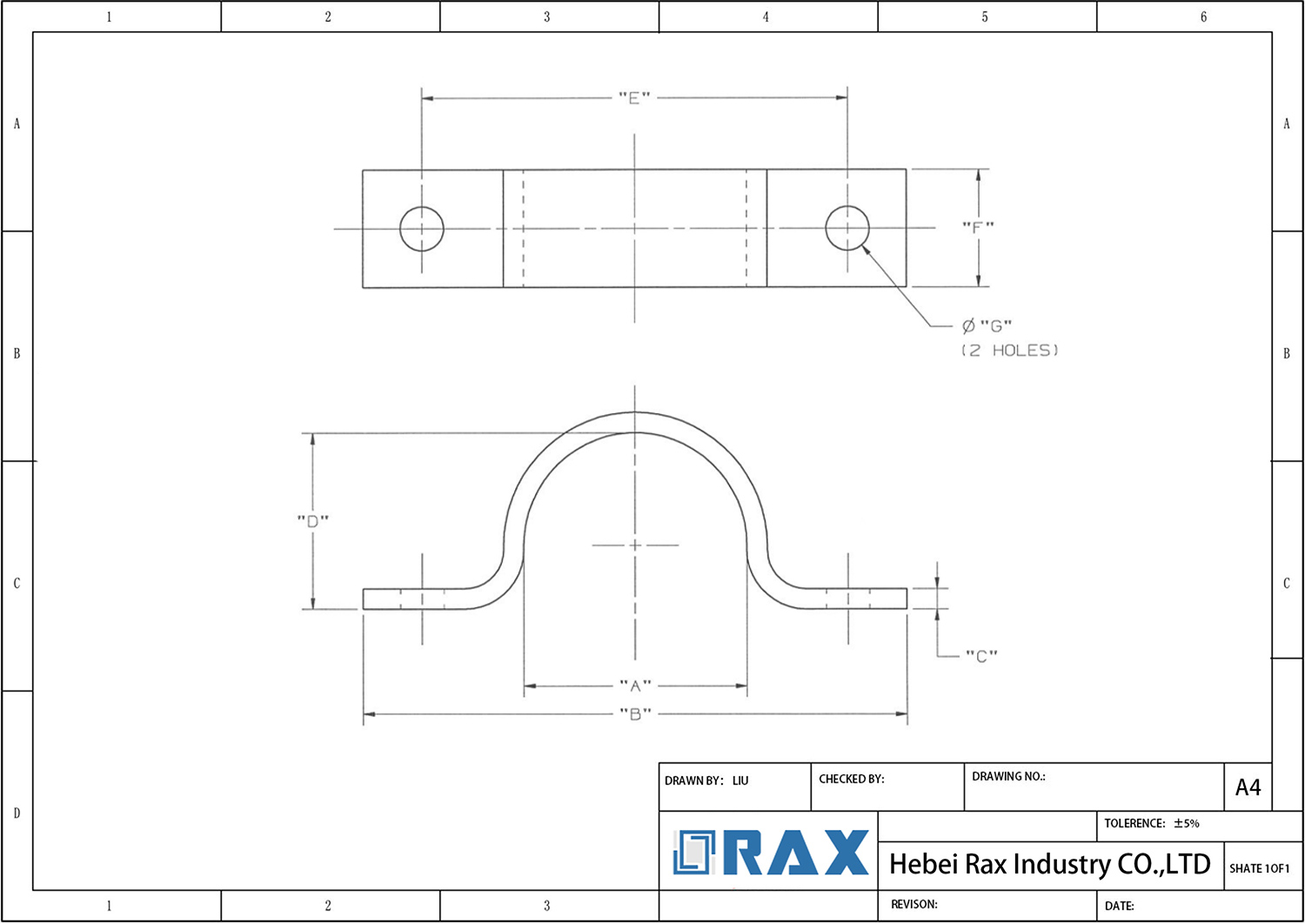

Cable Guard Strap Drawing
| Trade Size | CAT# | Description | Unit of Measure |
| 1/2″ | SP-20 | Steel,Two Holes | Each |
| 3/4″ | SP-21 | Steel,Two Holes | Each |
| 1″ | SP-22 | Steel,Two Holes | Each |
| 1-1/4″ | SP-23 | Steel,Two Holes | Each |
| 1-1/2″ | SP-24 | Steel,Two Holes | Each |
| 2″ | SP-25 | Steel.Two Holes | Each |
Related Products
Frequently Asked Questions (FAQ)
What is a U Cable Guard Strap used for?
A U Cable Guard Strap is designed to fasten and secure U cable guards to light and utility poles. It serves as an attachment point for connecting conduit pipes and U cable guards, providing protection for ground cable connections on utility poles.
What materials are U Cable Guard Straps made from?
U Cable Guard Straps are manufactured from 14-gauge durable steel with ASTM A-153 galvanized coating. They feature a polyethylene and steel construction designed to withstand various weather conditions and provide long-lasting durability.
What sizes are available for U Cable Guard Straps?
U Cable Guard Straps come in various sizes including 1″, 2″, 3″, and 4″ options. Each size can be banded with 3/4″ band and is designed to hold single conduit or U-guard configurations on poles.
How are U Cable Guard Straps installed?
Installation requires hex head lag screws with steel neoprene washers. The straps feature two-hole mounting configurations for secure fastening. They can be either banded or lagged to the pole, with 1/4″ lag screws typically used for mounting.
What are the compatibility requirements?
U Cable Guard Straps are compatible with 6534T and 6535 U cable guards. The mounting holes are typically 11/32″, and the stock material is usually .75″ wide by 1/8″ thick steel for standard installations.
What protection features do U Cable Guard Straps offer?
They provide non-conductive, high-impact protection for utility power and communication cables. The system offers excellent weather resistance and impact strength across a wide temperature range, superior to other non-conductive riser materials.
