T-Slot Bar
The T-Slot Bar, also called T-slot Extrusion, is an essential component for mounting various equipment securely to poles, structures, walls, and enclosures. This versatile bar features slots that accommodate 1/2″ and 5/8″ diameter bolts, allowing for easy attachment and adjustment. Users can effectively utilize the T-Slot Bar in conjunction with conduit standoff brackets, enhancing the stability and organization of electrical installations. Its robust design ensures that it can withstand various environmental conditions while providing reliable support.
To use the T-Slot Bar, simply align it with your desired mounting location and secure it using appropriate bolts. The bar’s design eliminates the need for field drilling, making installation straightforward and efficient. It is particularly effective when paired with products like the Aluma-Form conduit brackets, which leverage the T-slot structure for enhanced adjustability. The T-Slot Bar can be found in multiple lengths and configurations, including two-way and four-way options, catering to different installation needs. The T-slot design allows for flexible configurations, accommodating a wide range of applications in electrical and utility work.
Features:
• Compatible with 1/2″ and 5/8″ diameter bolts
• Eliminates need for field drilling
• Versatile use with various mounting brackets
• Available in multiple lengths and configurations
• Constructed from durable aluminum material

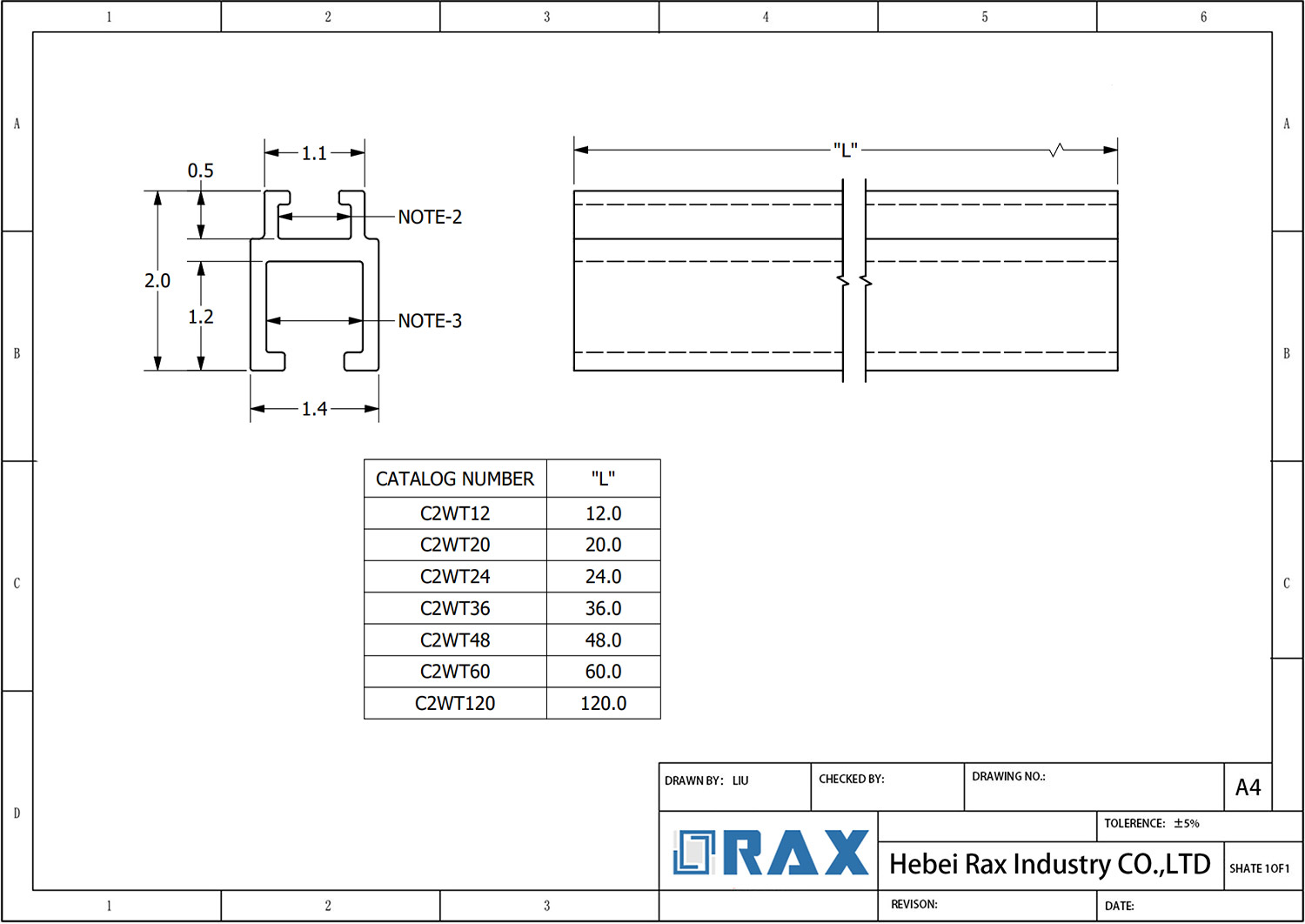

T-Slot Bar Drawing
