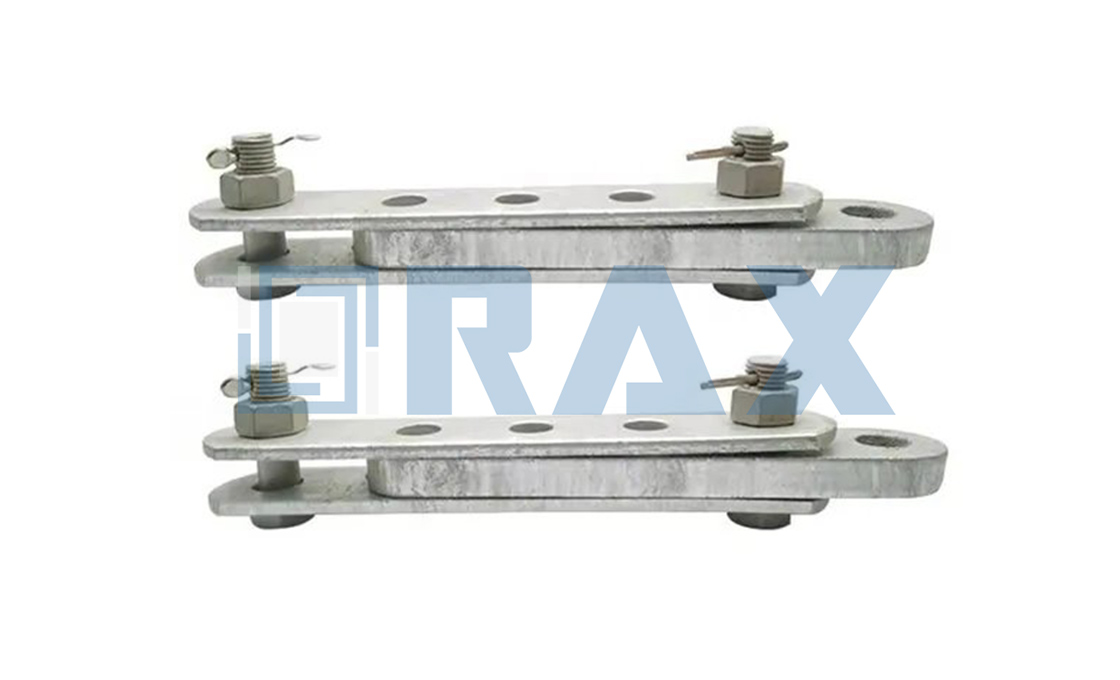

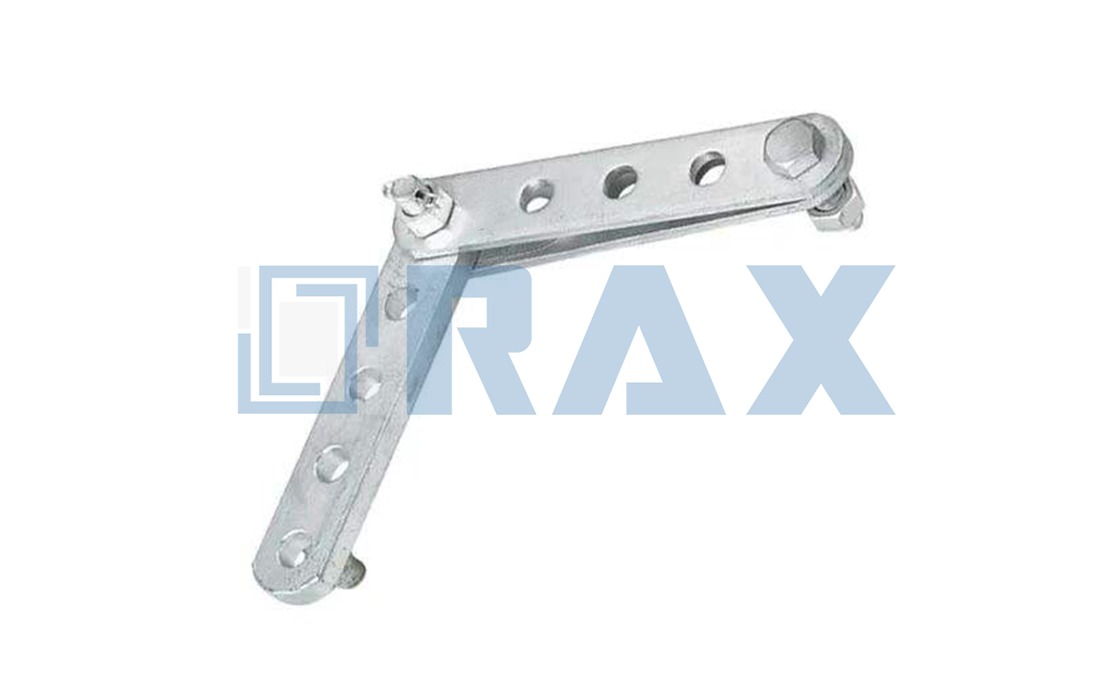

PT type Adjusting Plate
The PT type adjusting plate, also known as the sag adjuster plate, is an essential component used in overhead line accessories. This versatile link fitting connects clamps to insulators or links insulators to ground wire clamps, ensuring proper tension and alignment in electrical installations. The PT type adjusting plate is constructed from high-quality hot-dip galvanized steel, providing durability and resistance to harsh environmental conditions. It features multiple holes on its surface for easy installation and adjustment, making it suitable for various applications in electrical engineering.
To use the PT type adjusting plate effectively, it can be paired with other components such as insulator strings and clamps. This combination allows for precise adjustments in the sag of conductors, optimizing their performance and safety. The product is available in various sizes and can be customized according to specific project requirements. With its robust design and functionality, the PT type adjusting plate is a reliable choice for professionals working in overhead line construction and maintenance.
Key features:
- Made from hot-dip galvanized steel for enhanced durability
- Multiple holes for versatile installation options
- Customizable sizes to meet specific project needs
- Suitable for various electrical overhead line applications
Ensures optimal tension and alignment of conductors
Frequently Asked Questions (FAQ)
What is a PT type adjusting plate?
A PT type adjusting plate, also known as a sag adjuster plate, is a specialized component used in overhead power lines. It allows for the adjustment of conductor sag, ensuring optimal tension and alignment of the conductors. This helps maintain the integrity and safety of electrical transmission systems.
How does a sag adjuster plate work?
The sag adjuster plate functions by connecting insulator strings and conductors, allowing for precise adjustments to be made to the sag of the conductor. By altering the length of the insulator string or the position of the conductor, it ensures that electrical lines maintain proper tension and alignment under varying environmental conditions.
What are the standard sizes of PT type adjusting plates?
Standard sizes for PT type adjusting plates vary based on application requirements. Common sizes include 12 inches, 18 inches, and 24 inches in length. As a leading manufacturer, we can customize sizes according to specific customer needs to ensure compatibility with various electrical systems.
What materials are used in PT type adjusting plates?
PT type adjusting plates are typically made from durable materials such as steel or aluminum. These materials provide strength and resistance to environmental factors like corrosion and temperature fluctuations, ensuring longevity and reliability in outdoor applications.
How do I install a sag adjuster plate?
To install a sag adjuster plate, first ensure that the power is turned off. Then, connect the plate to the insulator string and conductor using appropriate hardware. Adjust the length as needed to achieve desired sag levels before securing all connections tightly to prevent movement during operation.
Can sag adjuster plates be reused?
Yes, sag adjuster plates can be reused if they are not damaged or excessively worn. Regular inspection is recommended to ensure they remain in good condition. If any signs of wear or damage are present, replacement is advised to maintain safety and functionality.
Where can I buy PT type adjusting plates?
PT type adjusting plates can be purchased from specialized electrical equipment suppliers or directly from manufacturers like us. We offer a range of options and custom solutions tailored to meet specific project requirements.
